High strength Heavy Duty Scrap Car Baler tp press scrap hms 1&2 with CE and ISO9001
Our 400ton heavy duty scrap car baler is mainly for large output metal recycling plant. It’s output is about 9tons per hour. It can work 24 hours per day because we equipped oil cooling system on it. The pressing chamber size and bale size is customized according to the user’s request.
The operation method can be hand valve control or PLC automatic control.
1.Techncial parameters:
| Model | Y83/T-400 |
| Cylinder pushing /shearing force | 400 ton |
| Maximum working pressure | 25MPa |
| Capacity | 9tons/h |
| Compress room size | 3000×2000×1200mm |
| Bale dimensions (LxWxH) | (450-800)×550×650mm |
| Feeding mouth | 2800×1800mm |
| Bale weight | 400-800kg |
| Theoretical dry cicle time | 160 sec. |
| Max. thickness can be press | 9mm |
| Motor | 110kW |
| Baler dimensions (LxWxH) | 11800×6760×6700mm |
| Weight | 50000(kgs) |
2.Brief Introduction of Baling Process
At first, the waste material for baling should be loaded into the compacting box manually or mechanically. The Lid cylinder starts to revolve the Lid to the right position for sealing the compacting box completely. Then the ejectors of the side cylinder and the main cylinder squeeze the waste materials into bale. Relying on the locking door cylinder, the locking door will be opened. The ejector of the main cylinder will push the bale out of the compacting box, finishing the baling process.
2. Quality: This machine apply to ISO9001: 2000 standard.
3. Service:
1) One year guarantee and lifelong maintenance.
2) Any problem, you can call us directly.
4.Optional Extra
Conveyor Feeding
Oil heater
Oil cooler
Diesel Engine Drive
5.Applications
Non Ferrous Metals
Coppers
Aluminum Cans
Aluminum Windows
Scrap Aluminums
25 Liter Drums
Tin Cans
Steel Shavings
Aluminum Chips
Aluminum Sheets
Aluminum And Copper Wires
Waste scrap car
Gloden supplier for world famous brand:

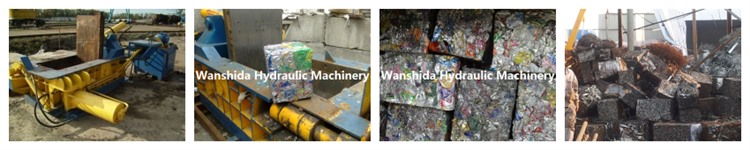

125 ton Press Baler For Cans Tin Cans photos in our clients yard as follows:

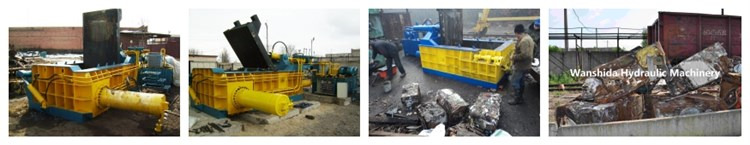

160ton Waste Metal Baling Press:
135ton Forward out Scrap Metal Baler Press:
120ton Metal Cutting Machine Alligator Shear:
Scrap Briquetting Press:
